how we build hose assemblies



types of hoses
Extremely High Pressure
  SAE 100R15. (4-6 wire, 6K psi)
  SAE 100R13. (4-6 wire, 5K psi)
  SAE 100R12. (4 wire, 4K psi)
  J2AT Jack Hose (3/8 inch ID, 10K psi)
High Pressure
  SAE 100R1 AT (1 wire)
  SAE 100R2 AT (2 wire)
  SAE 100R17 (1 wire)
  SAE 100R16 (2 wire)
  SAE 100R7 (1 braid)
  SAE 100R8 (2 braid)
 		Medium Pressure
  SAE 100R6 (single braid, 400 psi)
Low Pressure
  SAE 100R4 (suction & discharge)
  Lock-On (push-on type, 300 psi)
Automotive & Marine Applications
  SAE 100R5 Type C (truck/fleet hose)
  SAE 100R5 Type D (high temp & multi fluid)

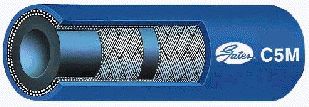

  SAE 100R5 Type M (marine fuel & oil)
  SAE 100R14 Type A & B (PTFE core,
    stainless steel braid cover,
    marine, fuel & oil)
  SAE J51 (automotive air condition hose)
  Fuel Line/PCV/EEC

identification guides (Gates Hydraulics Catalog 2007)
G25170. Hydraulic fitting.
couplings selection &
thread identification 		MJ-MP
hydraulic adapters

Quick Disconnects


G25170. Hydraulic fitting.
torque guide 		MJ-MP
Hydraulics Catalog
431-2080 c.2007
(PDF 18 MB)
Automotive Catalog
431-2010 c. 2008
(PDF 2MB)


Gates Marine
marine hydraulics
video presentation

MJ-MP
how to assemble
a 100R5 series


Selecting the
proper hose
